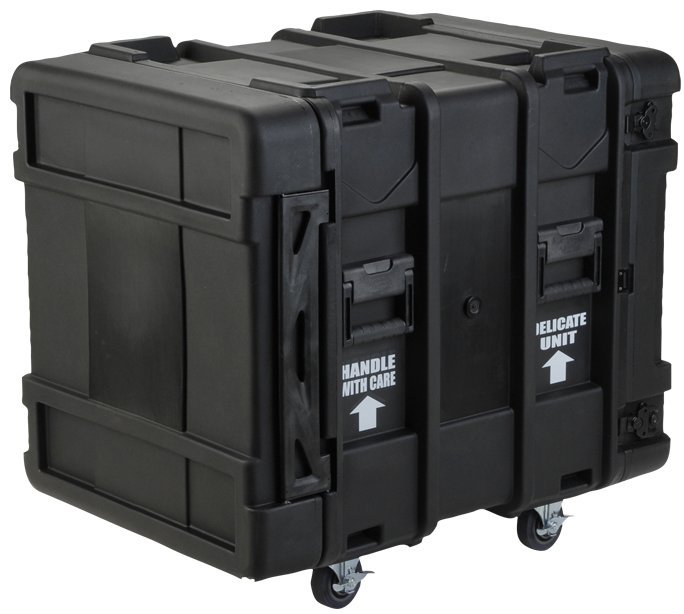

CCR912U243SK Case


12U 24" Deep Roto Shock Rack

Includes rear rails, front and rear doors
Patent pending compound hinge system
Stainless steel key lockable field replaceable latches
Elastomeric shocks
Stackable with the wheels on
Slideout removeable casters standard

Case has a Lifetime Warranty

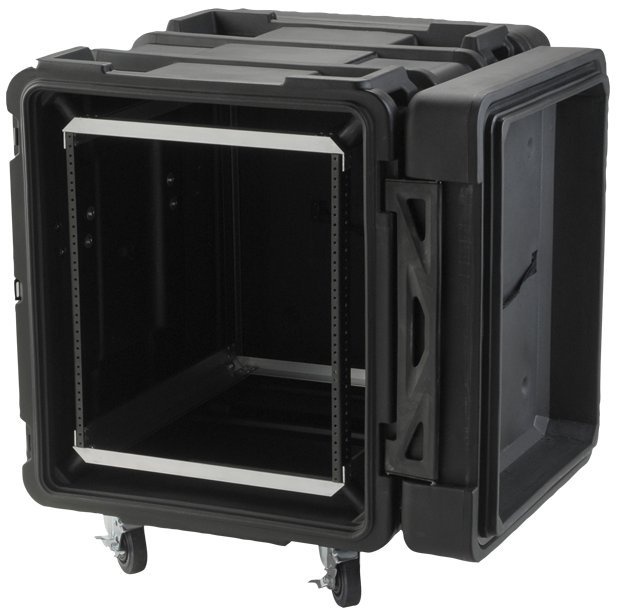

Compound hinge system and field replaceable latches that allows the lid to swing out and completely around to lie flat against the main body of the case, or you can go lid-less with an effortless lift motion and reinstalled with the same ease in seconds.

The front and rear lids are designed to protrude into the base of the case approximately 1″ and their unique double wall structure makes them incredibly stiff where this intersection occurs. Making this new generation of shock racks mil-spec sealing characteristics with significantly fewer latches than most competition. This allows for rapid deployment in an up-right configuration — even when stacked.

The standard depth front to rear rail is 24″ and each lid is 4″ deep. The 24″ shock-rack system stacks securely with the wheels on or off and this revolutionary design is also the only shock rack that will open front and back while stacked.

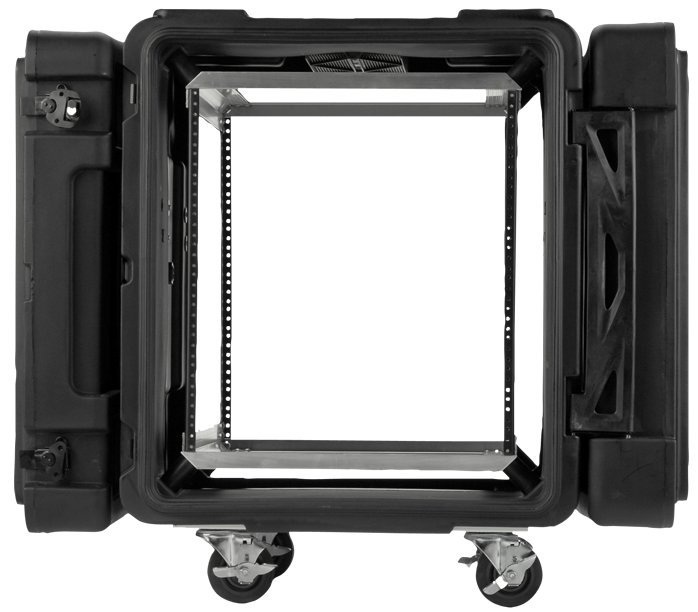

The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to DIA-310 standards. Shock and vibration mitigation is accomplished with eitht (8) elastomeric isolators rated for a payload range of 40 lbs. to 150 lbs. in a standard configuration and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation. The rack rails come pre threaded for standard 10-32 hardware and mounting screws are included.

Product Specifications

Interior Dimensions24.00"L x 19.00"W x 21.00"H
(610mm x 483mm x 533.4mm)
Shipping Weight94.00 LBS (estimated weight of the product with packaging such as a cardboard box)
(42.64 kg)
CharacteristicsWaterproof, Shippable, Lifetime Warranty, Crushproof, Outdoor Use
HardwareWheels (Casters (set of 4)), Hinged Lid, Removable Lid, Built in Locks (option), Pressure Equalization Valve
Manufacturing MethodRotationally Molded
Manufacturing OriginUnited States of America
Case MaterialPlastic
Rackable Depth24.00 in
Shock AbsorptionElastomer Shock Absorbers
Extended Title12U 24" Deep Roto Shock Rack
Rack Units Total12
Depth Front Rail to Back Lid 28.50"
Rackable Depth 24.00"
Lid Depth 4.50"
