CCR906U303SK Case

$1448.99

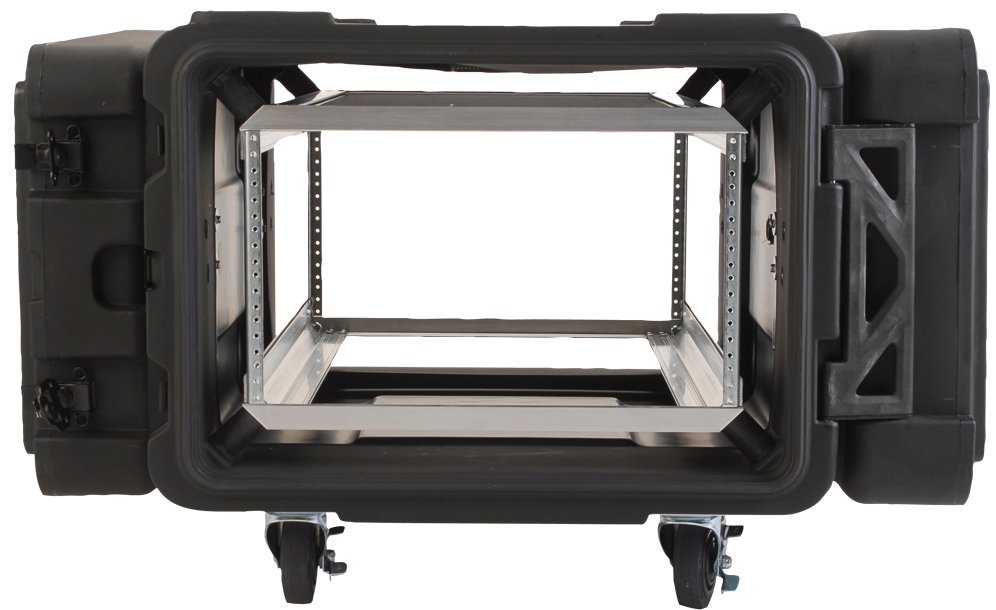

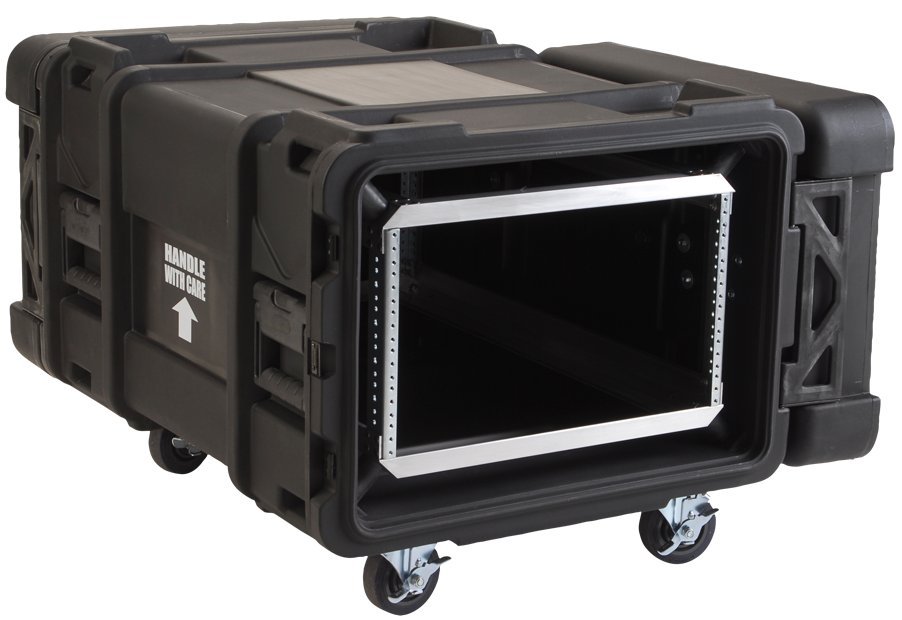

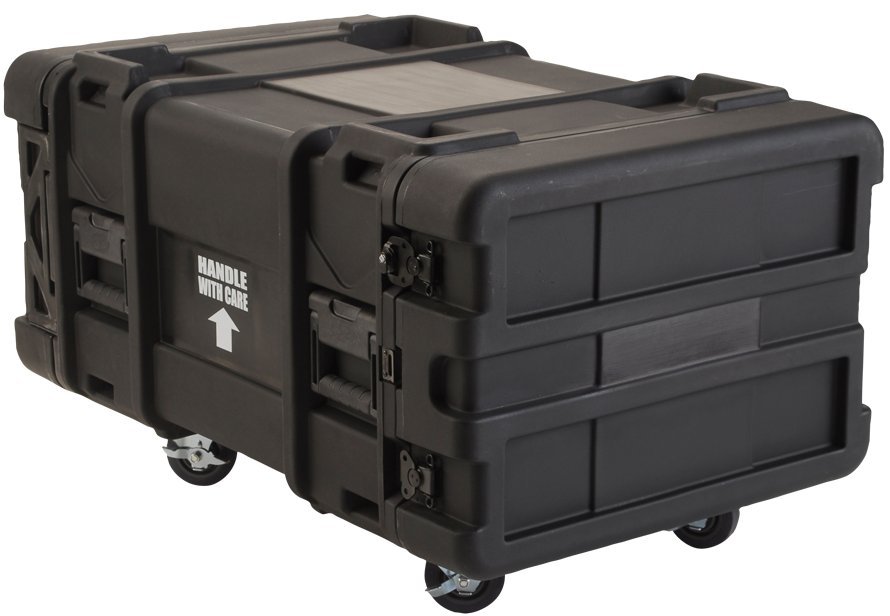

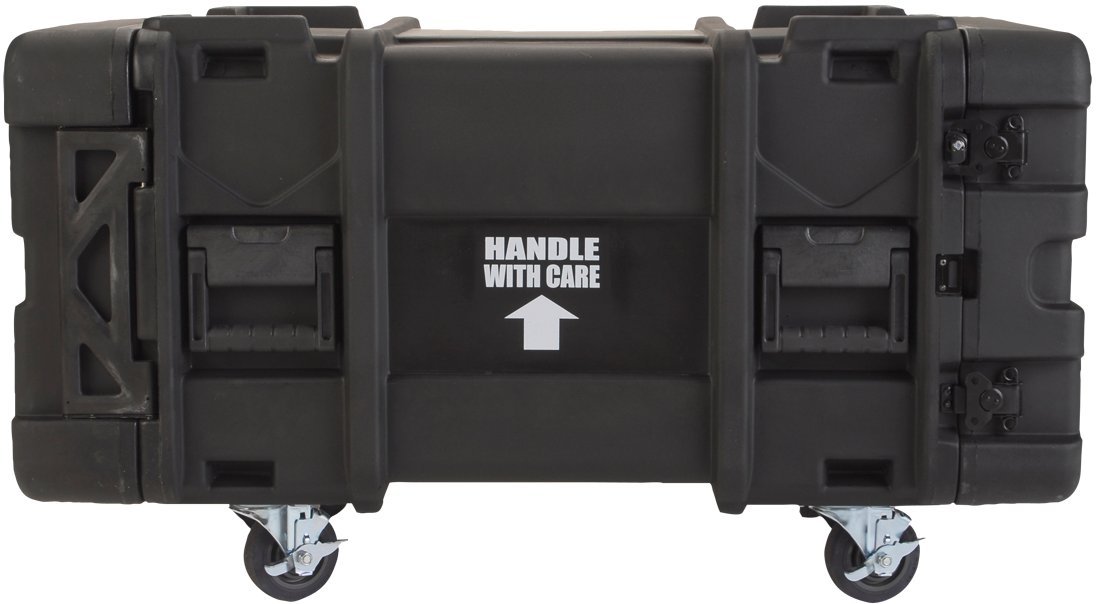

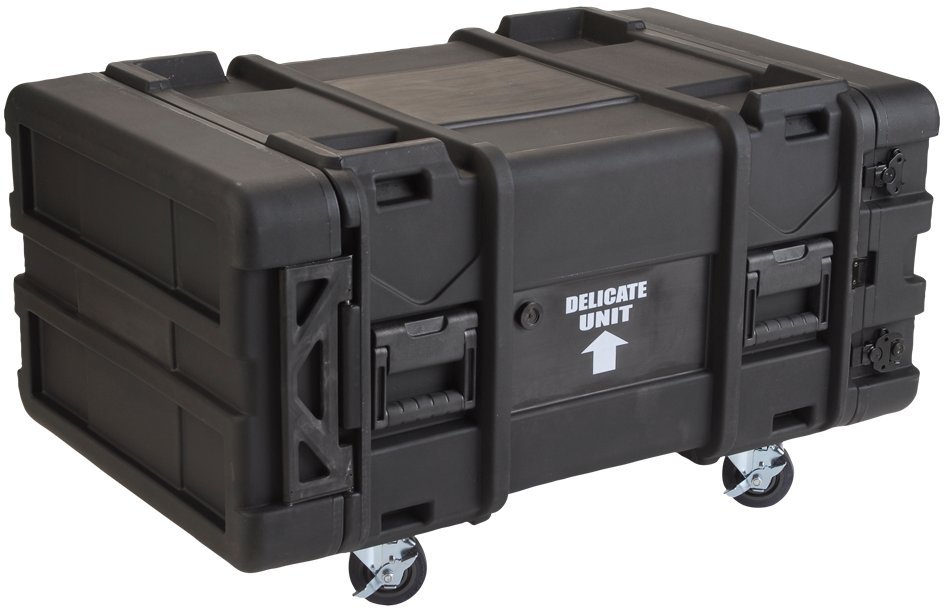

6U 30" Deep Roto Shock Rack

6U front and rear rack rails

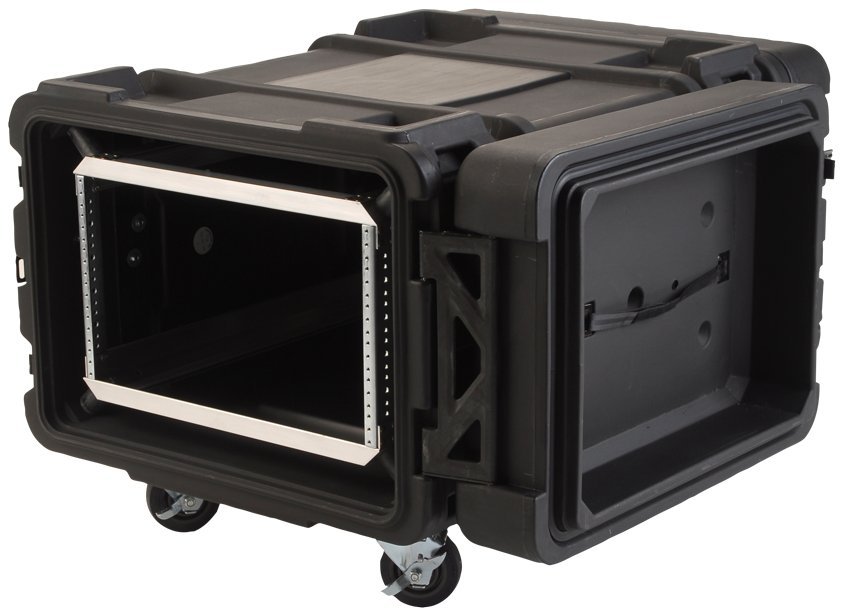

Patent pending compound hinged doors
Threaded steel rails
Rear rails
Casters
Shock and water resistant
Gasketed doors
Stainless steel key-lockable field replaceable latches
Removable 4″ casters standard
Stacks securely with the wheels on or off
Recessed latches
Adjustable elastomer shock absorbers
Provisions to add additional shocks
Roto molded for strength

Case has a Lifetime Warranty

Description

This 30″ deep rotomolded shock rack should be an instant success with all companies utilizing the deeper servers such as the new Dell and Compaq. Nobody else manufactures a rotationally molded shock rack that is 30″ deep and that fits inside the center portion of the case.

This case has all of the same great features as the 24″ deep Roto Shock Series. Standard features include: (patent pending) compound hinged doors, black powder coated stainless steel latches, removable 4″ casters. The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to DIA-310 standards. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 lbs. to 150 lbs. in a standard configuration and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation with gasketed doors and pressure relief valve. The rack rails come pre-threaded for standard 10-23 hardware and mounting screws are included.

Product Specifications

Interior Dimensions30.00"L x 19.00"W x 10.50"H
(762mm x 483mm x 266.7mm)
Exterior Dimensions42.00"L x 26.75"W x 19.75"H
(1,067mm x 679mm x 502mm)
Shipping Weight79.00 LBS (estimated weight of the product with packaging such as a cardboard box)
(35.83 kg)
CharacteristicsWaterproof, Shippable, Lifetime Warranty, Crushproof, Outdoor Use
HardwareWheels (Casters (set of 4)), Hinged Lid, Removable Lid, Pressure Equalization Valve
Manufacturing MethodRotationally Molded
Manufacturing OriginUnited States of America
Case MaterialPlastic
Rackable Depth30.00 in
Shock AbsorptionElastomer Shock Absorbers
Extended Title6U 30" Deep Roto Shock Rack
Rack Units Total6
