CC9U2022B3RSSK Case

$ 1,393.23

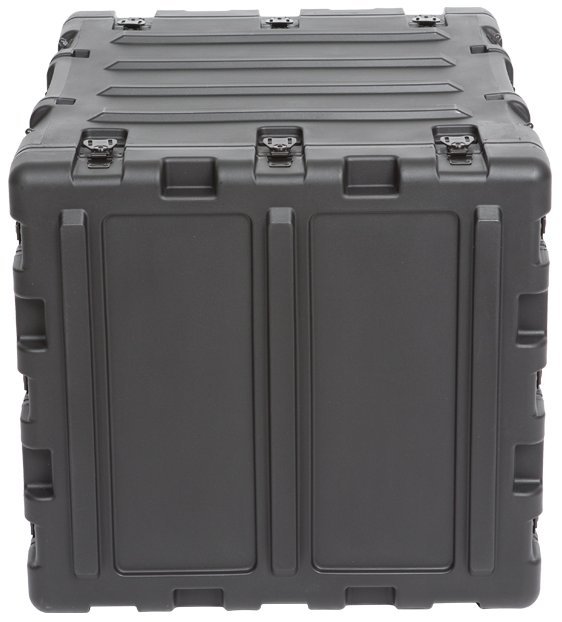

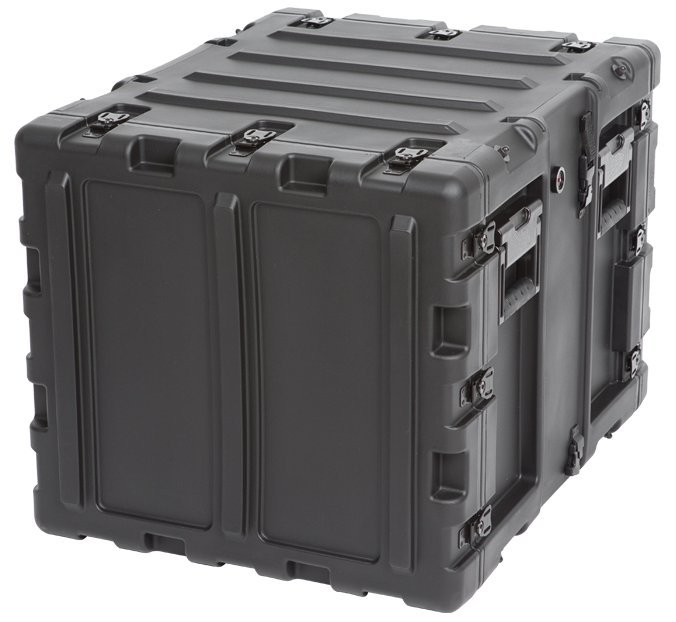

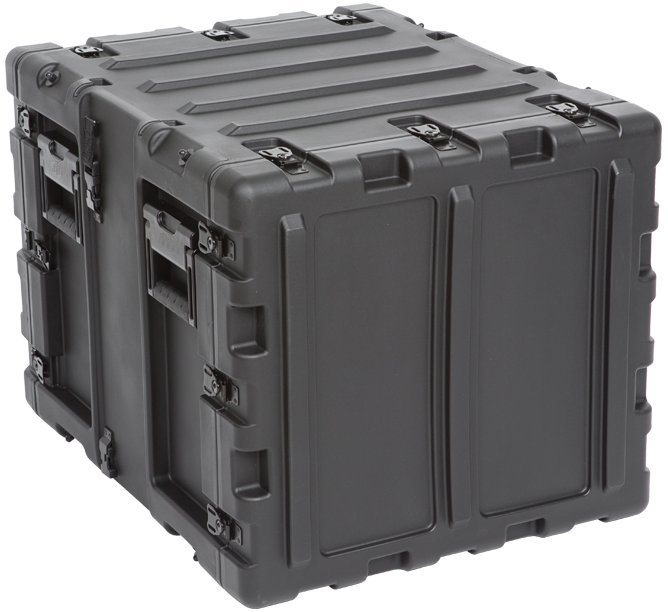

9U 20" Deep Static Shock Rack
Meets or exceeds MIL-STD 810G
Standard payload range of 40 to 150 lbs
Optional extended payload range 160 to 300 lbs
Standard 19″ rack width per ANSI/EIA-310-C
Standard rack depth 20″ rail to rail
Square hole rack rails to accommodate either #10-32 US standard or 6mm international standard cage nuts
2″ front and rear lids
Rugged roto-molded shell ensures industry leading strength and impact resistance
Molded in stacking ribs and lugs are designed to stack with all similar cases, as well as competitive manufacturer cases
Recessed black powder coated stainless steel hardware
4 comfort grip spring loaded lift handles
Lid hangers (standard)
Case coupling straps (standard)

Case has a Lifetime Warranty

Description

These Static Shock Rack Transport cases are available in 8 sizes: 3U, 4U, 5U, 6U, 7U, 9U, 11U and 14U. These Shock Racks are lightweight, shockproof, watertight, dustproof, heat and chemical resistant, and perfect for protecting and transporting your sensitive electronic equipment.

The inner rack chassis is built of high strength (but lightweight) aluminum alloy extrusions with 11 gauge hot rolled carbon steel rack rails to meet EIA-310 standards. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 lbs to 150 lbs in a standard configuration (optional extended payload range of 160 lbs to 300 lbs can be accommodated as a special order option). The interior frame and shocks provide adequate sway for ambient air circulation and heat dissipation.

The cases are molded of LMDP Linear Medium Density Polyethylene plastic that meets or exceeds MIL-STD 810G standards. Measuring 20″ deep from rail to rail with a standard 19″ rack width per ANSI/EIA-310-C specification, and also feature square-hole rack rails to accommodate either #10-32 US standard or 6mm International standard cage nuts which are supplied with the cases.

The rugged roto-molded shell ensures industry leading strength and impact resistance. The standard commercial off the shelf (COTS) case comes with 2″ deep front and rear lids to accommodate rack gear that is longer than 20″. Molded-in stacking ribs and lugs are designed to stack with all similar cases, as well as competitive manufacturer cases, and feature black powder coated stainless steel hardware that is recessed for protection and 4 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked.

Note: These 20″ Shock Racks do not come standard with wheels; please see the Shock Rack Caster Platform for an alternative.

For an additional fee, extra shock absorbers can also be added at the factory which will increase the payload up to 300 lbs.

Additional Information

Interior Dimensions24.00"L x 19.00"W x 15.75"H
(610mm x 483mm x 400.05mm)
Shipping Weight60.00 LBS (estimated weight of the product with packaging such as a cardboard box)
(27.22 kg)
CharacteristicsWaterproof, Shippable, Lifetime Warranty, Crushproof, Outdoor Use
HardwareNo Wheels, Removable Lid, Pressure Equalization Valve
Manufacturing MethodRotationally Molded
Manufacturing OriginUnited States of America
Case MaterialPlastic
Rackable Depth20.00 in
Rack Units Total9
Shock AbsorptionElastomer Shock Absorbers
Extended Title9U 20" Deep Static Shock Rack
