CC3U2022B3RRSK Case

$ 1,266.72

3U 20" Deep Removable Shock Rack
Completely removable frame for access to bench integration
Meets or exceeds MIL-STD 810G
Standard payload range of 40 to 150 lbs
Optional extended payload range 160 to 300 lbs
Standard 19″ rack width per ANSI/EIA-310-C
Standard rack depth 20″ rail to rail
Square hole rack rails to accommodate either #10-32 US standard or 6mm international standard cage nuts
2″ front and rear lids
Rugged roto-molded shell ensures industry leading strength and impact resistance

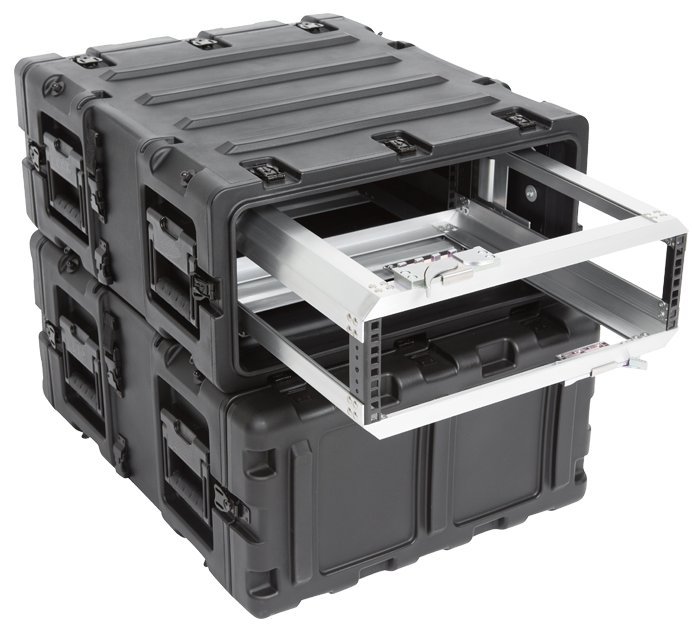

Molded in stacking ribs and lugs are designed to stack with themselves, as well as competitive manufacturer cases
Recessed black powder coated stainless steel hardware
Four (4) comfort grip spring loaded lift handles
Lid hangers (standard)
Case coupling straps (standard)

Case has a Lifetime Warranty

Description

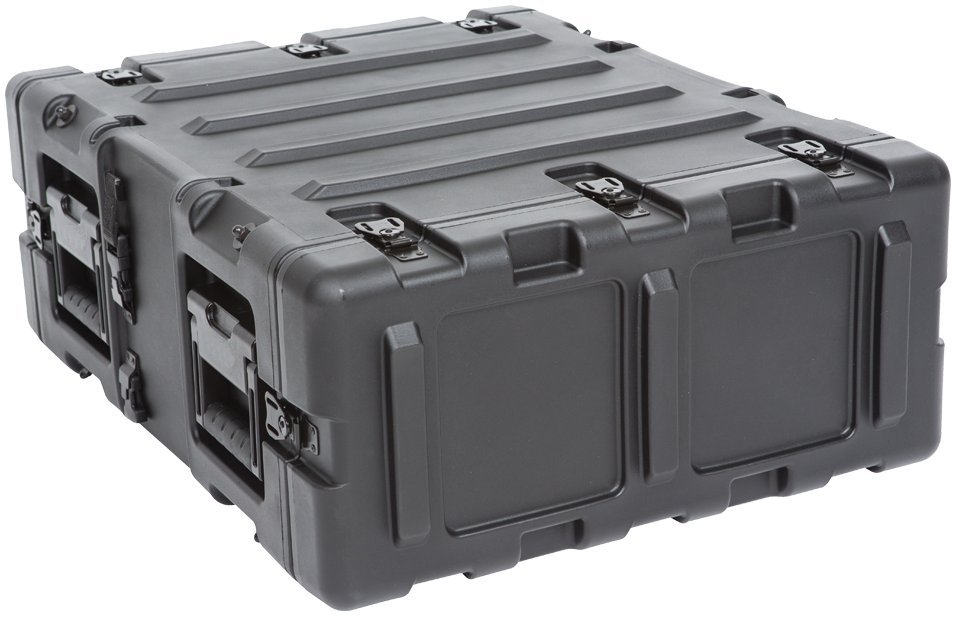

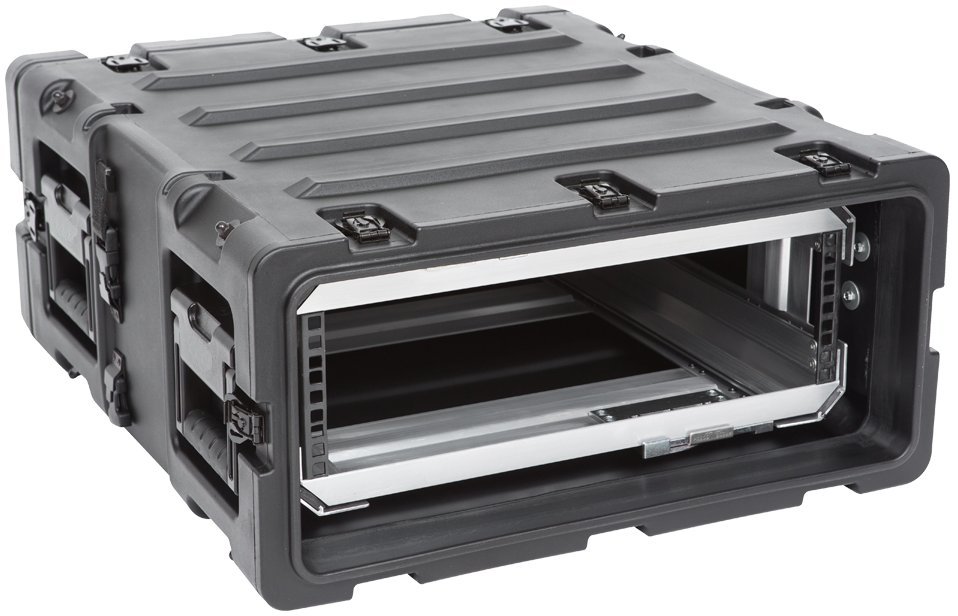

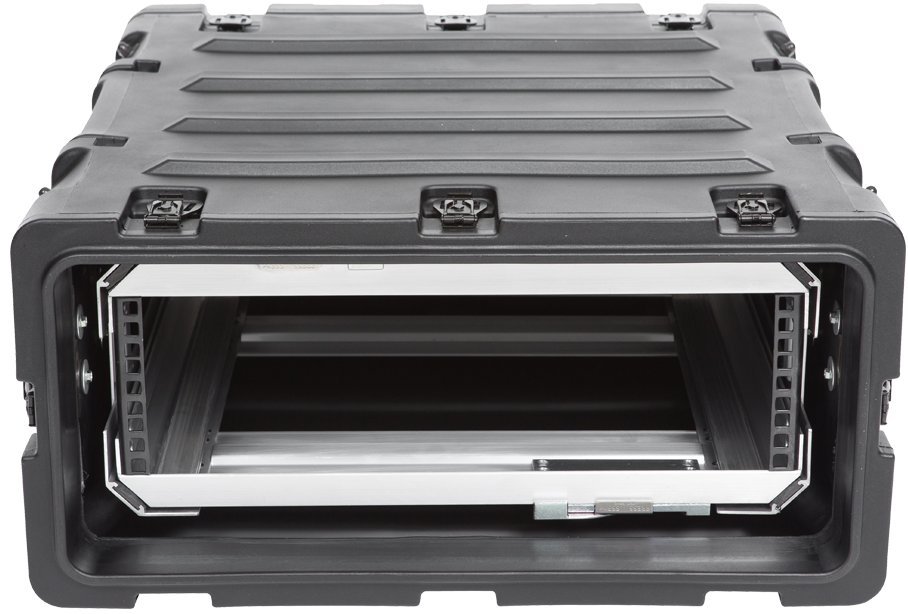

This Removable Shock Rack Transport case is available in 8 sizes: 3U, 4U, 5U, 6U, 7U, 9U, 11U and 14U. These Shock Racks are lightweight, shockproof, watertight, dustproof, heat and chemical resistant, perfect for protecting and transporting your sensitive electronic equipment.

Molded of LMDP Linear Medium Density Polyethylene plastic that meets or exceeds MIL-STD 810G standards, these Shock Racks also include 8 elastomeric shock absorbers which allow for a standard payload range of 40 to 150 lbs (optional extended payload range of 160 to 300 lbs can be accommodated as a special order option). These 20″ Removable Racks are 20″ deep from rail to rail with a standard 19″ rack width per ANSI/EIA-310-C specification and feature square-hole rack rails to accommodate either #10-32 US standard or 6mm International standard cage nuts which are supplied with the cases.

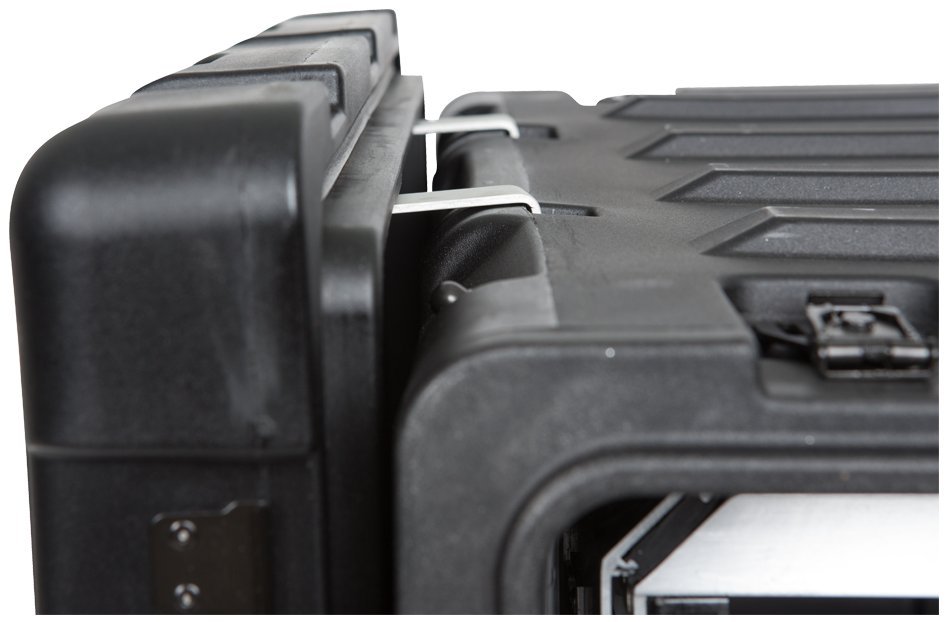

The rugged roto-molded shell ensures industry leading strength and impact resistance. The standard commercial off the shelf (COTS) case comes with 2″ deep front and rear lids to accommodate rack gear that is longer than 20″. Molded-in stacking ribs and lugs are designed to stack with themselves, as well as competitive manufacturer cases, and feature black powder coated stainless steel hardware that is recessed for protection and 4 comfort grip spring loaded lift handles which allow for easy movement. An automatic pressure relief valve is another standard feature along with gasket sealed lids that include convenient lid hangers to store your lids when your equipment is in operation. Coupling straps are included for securing the racks together when stacked.

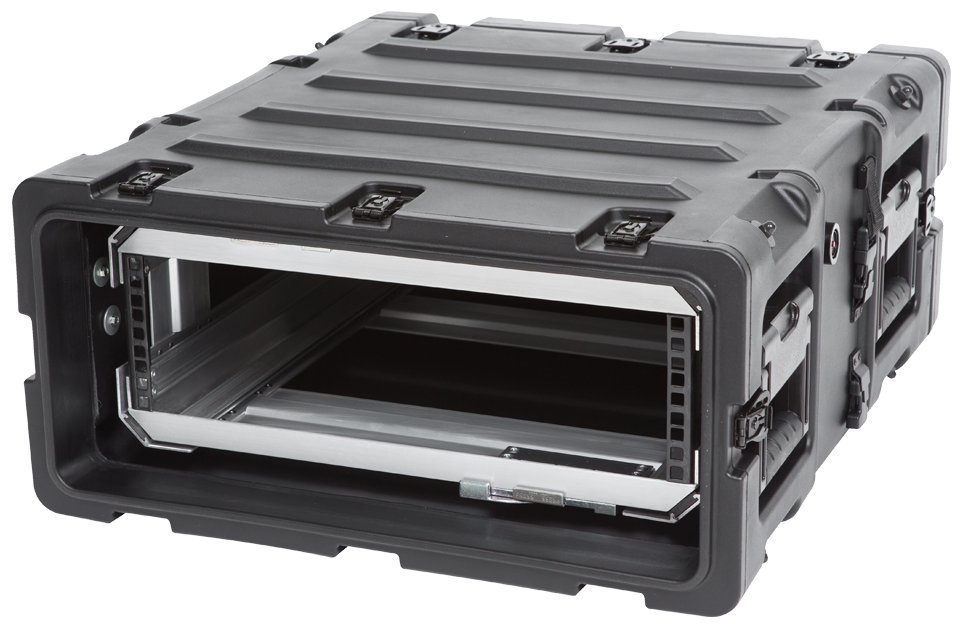

The interior of the case features a removable rack with a patent pending “positive lock” latching system that slides open like a file drawer, allowing full access to racked equipment. The interior rack is also completely removable allowing complete frame access for bench integration.

Note: These 20″ Shock Racks do not come standard with wheels; please see the Rack Caster Platform for an alternative.

For an additional fee, extra shock absorbers can also be added at the factory which will increase the payload up to 300 lbs.

Additional Information

Interior Dimensions24.00"L x 19.00"W x 5.25"H
(610mm x 483mm x 133.35mm)
Shipping Weight62.00 LBS (estimated weight of the product with packaging such as a cardboard box)
(28.12 kg)
CharacteristicsWaterproof, Shippable, Lifetime Warranty, Crushproof, Outdoor Use
HardwareNo Wheels, Removable Lid, Pressure Equalization Valve
Manufacturing MethodRotationally Molded
Manufacturing OriginUnited States of America
Case MaterialPlastic
Rackable Depth20.00 in
Shock AbsorptionElastomer Shock Absorbers
Extended Title3U 20" Deep Removable Shock Rack
Rack Units Total3
Rackable Depth 20.00"
Depth Front Rail to Back Lid 24.50"
