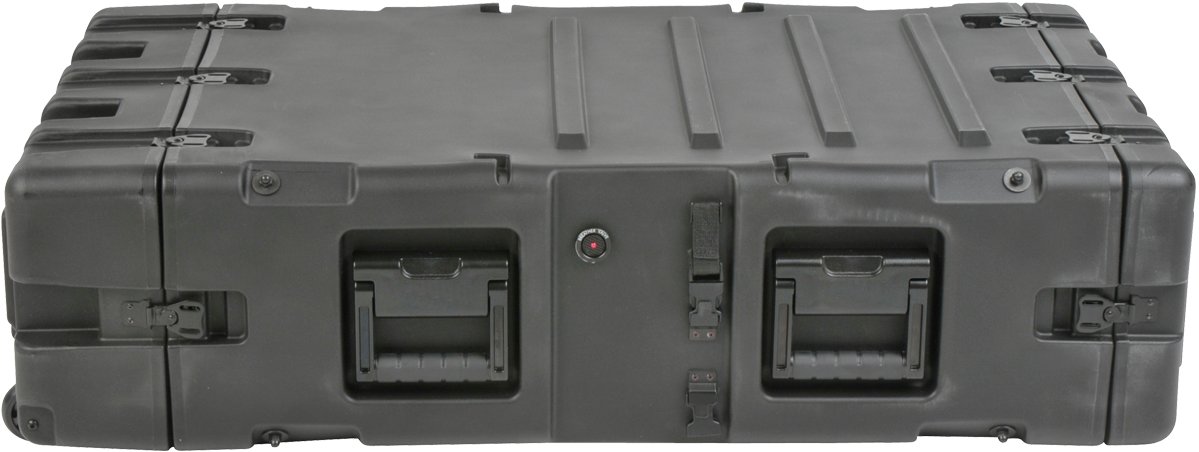

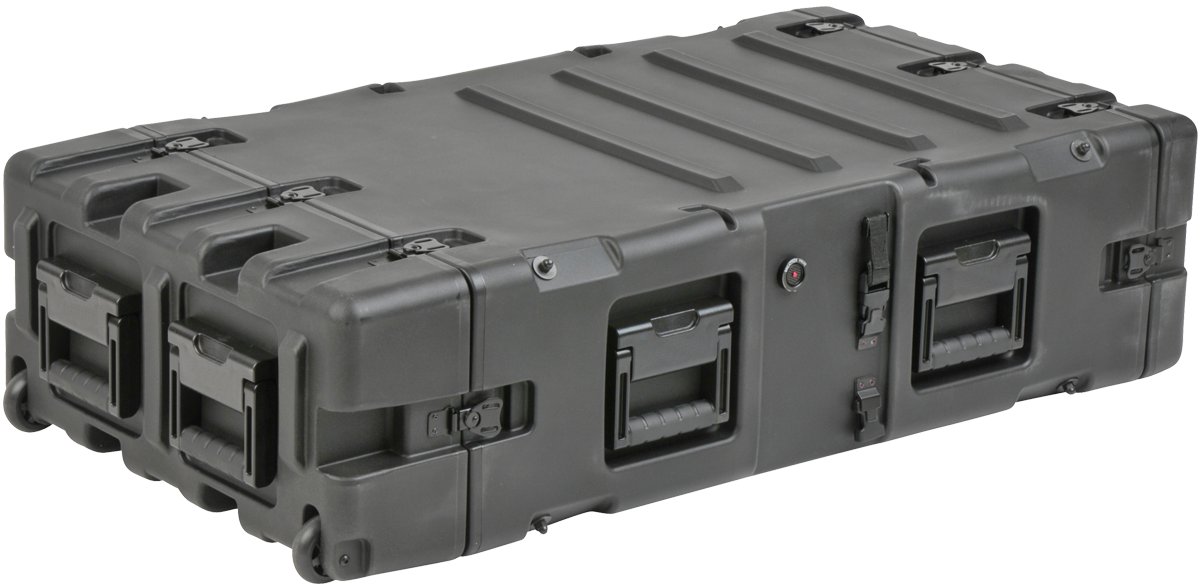

CC3U3025B3RSSK Case

$1719.99

3U 30" Deep Static Shock Rack

Meets or Exceeds MIL-STD 810G
Standard payload range 40 to 150 lbs
Optional extended payload range 160 to 300 lbs.
Standard 19” Rack width per ANSI/EIA-310-C
Standard Rack depth 24” rail to rail
Square hole rack rails to accommodate either #10-32 US standard, or 6mm international standard cage nuts
2” front lid, and 5” rear lid with edge casters standard, other options available
Rugged roto-molded shell ensures industry leading strength and impact resistance
Molded in stacking ribs and lugs are designed to stack with competitive manufacturers cases
Black powder coated stainless steel hardware (standard) which are recessed for protection
8 comfort grip spring loaded lift handles
Lid hangars (standard)
Case coupling straps (standard)
Reduced Footprint
Low Profile
Light Weight
PDF Detailed View

Case has a Lifetime Warranty

Description

The Case Club CC3U3025B3RSSK Case is built to securely house and transport rack-mounted electronics in rugged or mobile environments. Designed with a durable hard-sided exterior, this case resists impact, moisture, dust, heat, and chemicals—making it an ideal solution for sensitive equipment on the move. Inside, the case includes a 3U 30″ deep static shock rack, designed to isolate gear from external vibration while in transit. The internal rack conforms to ANSI/EIA-310-C standards with a 19” width and features square-hole rack rails that accommodate both #10-32 US standard and 6mm international standard cage nuts, which are included with the case. With no internal foam, the space is optimized for rack-mounted systems that require solid structure and flexible configuration.

Disclaimer: Ensure stored equipment is compatible with the case’s internal rack dimensions and mounting requirements.

Product Specifications

Interior Dimensions30.00"L x 19.00"W x 5.50"H
(762mm x 483mm x 139.7mm)
Exterior Dimensions45.03"L x 28.80"W x 11.82"H
(1,144mm x 732mm x 300mm)
Shipping Weight55.00 LBS (estimated weight of the product with packaging such as a cardboard box)
(24.95 kg)
CharacteristicsWaterproof, Shippable, Lifetime Warranty, Crushproof, Outdoor Use
HardwareWheels (Tilt Wheels), Removable Lid, Pressure Equalization Valve
Manufacturing MethodRotationally Molded
Manufacturing OriginUnited States of America
Case MaterialPlastic
Rackable Depth30.00 in
Rack Units Total3
Shock AbsorptionElastomer Shock Absorbers
Extended Title3U 30" Deep Static Shock Rack
